LABCORE FBG

Next-Generation Femtosecond Laser Workstation for Fiber Bragg Gratings

PRECISION FBG MANUFACTURING PLATFORM

LABCORE-FBG is a femtosecond laser workstation designed for the manufacturing of Fiber Bragg Gratings (FBGs) using direct-write technology.


Built on a thermally stable granite platform with high-precision motion stages and integrated machine-vision alignment, it delivers the accuracy, flexibility, and reliability required for both R&D and production environments.

Download Datasheet

FEATURES

  • FS-laser direct writing
  • Point-by-point & line-by-line writing
  • Standard and specialty fibers compatibility
  • Industrial reliability
  • Precise and dynamic core autofocus
  • Dynamic power control
Femtosecond Direct FBG Writing
Point-by-Point & Line-by-Line Inscription
Kilometer-Scale Fiber Processing

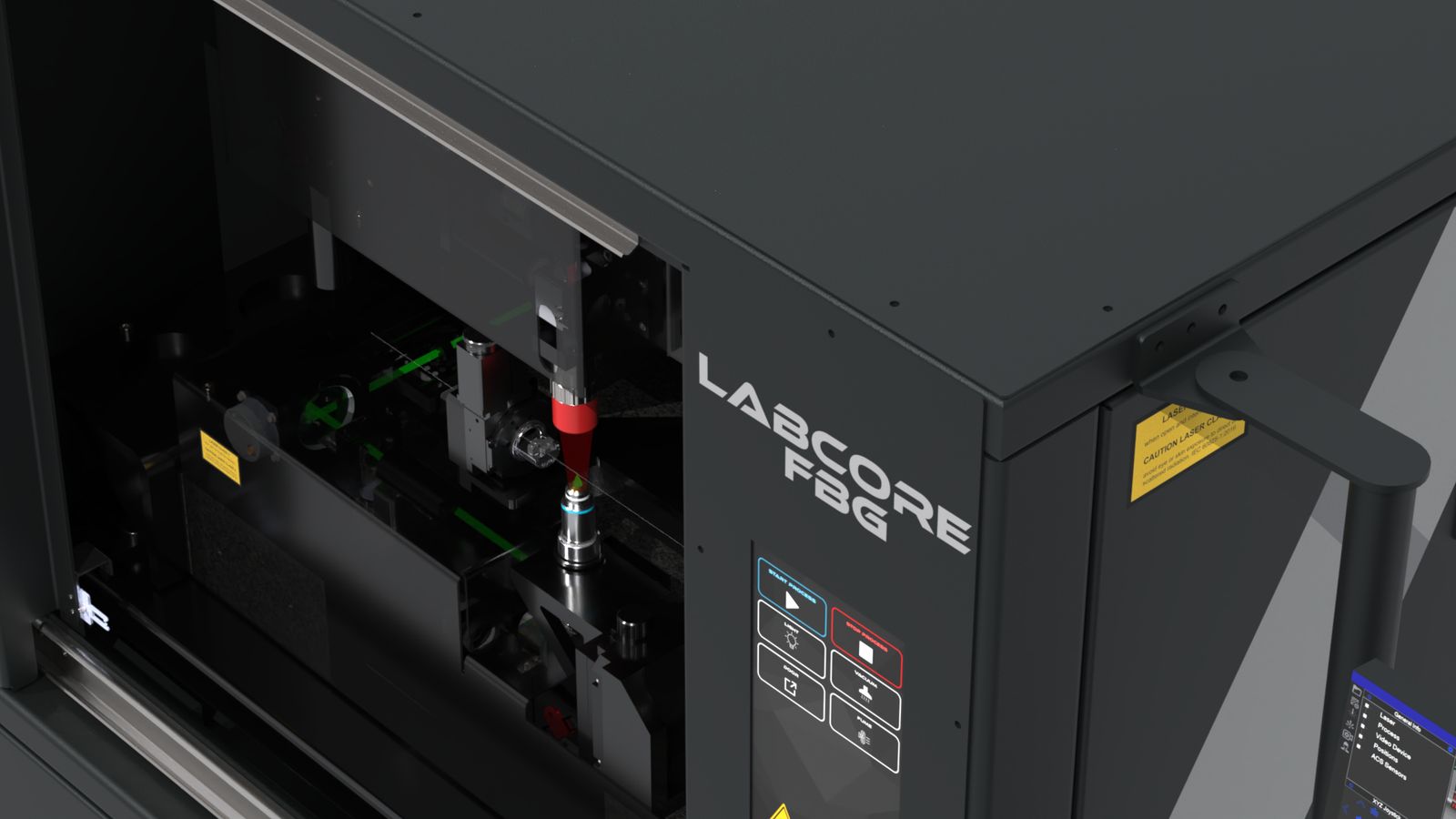

LABCORE-FBG developed for precision FBG manufacturing

  • Point-by-Point and Line-by-Line femtosecond laser inscription modes
  • Minimum grating pitch down to 1 µm for high-resolution structures
  • Real-time core detection with automatic alignment via machine-vision system
  • Active focal correction maintaining optimal core focus during inscription
  • Capability to fabricate uniform, chirped, apodized and multi-wavelength gratings
  • Optional automated reel-to-reel system for kilometer-scale fiber arrays
  • Stable granite platform with active and passive vibration isolation
Download Datasheet

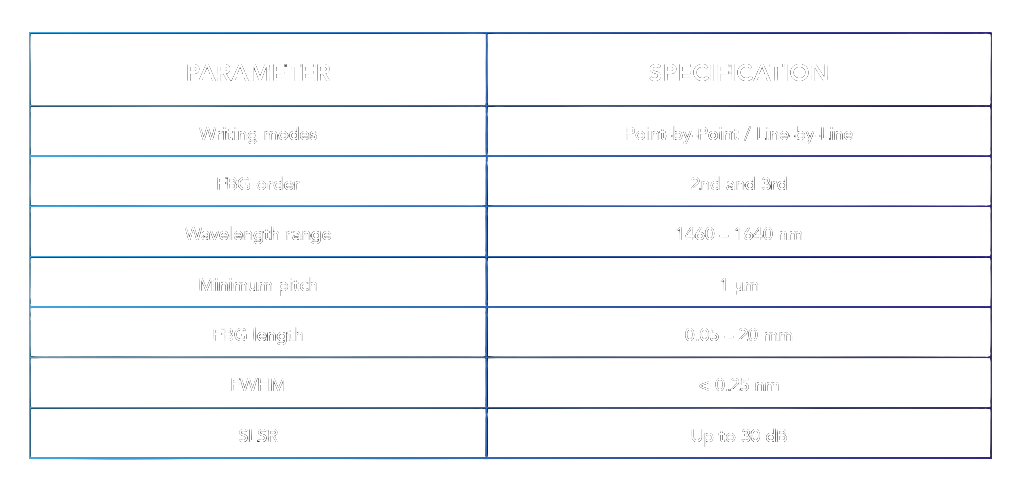

FBG MANUFACTURING SPECIFICATIONS

KEY BENEFITS
